multi N/C 3300 Series The Allrounder

The allrounder: Particle-rich, salt-containing, or very pure samples? This combustion analyzer is optimized for high throughput and offers the perfect balance between samples of all kinds.

TOC solids measurement can be included in the device configuration of a duo system, including automation, or without automation as an additional module. The HT 1300 is available as a solids module for the non-catalytic combustion of solid samples at up to 1800 °C (with additives) in a ceramic combustion tube. Horizontal sample introduction via ceramic boats enables the direct analysis of solid samples weighing up to 3 g without needing to wrap them into foil. Likewise, manual TIC analysis using direct acid digestion is also possible by adding a TIC module.

Upon request, a reliable electrochemical detector (ChD) can be integrated in the device for nitrogen determination. Alternatively, a chemiluminescence detector (CLD) can be added as a separate detector module - either during initial analyzer configuration or later.

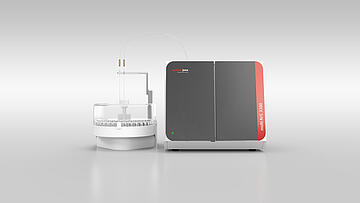

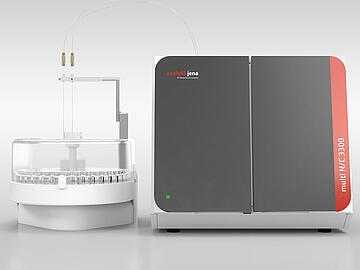

multi N/C 3300

Its high level of sensitivity, combined with a broad working range, makes this TOC/TN_b analyzer a multi-talented device for high throughput laboratories. The device is suited to analyze both high-matrix samples and ultrapure water. Robust loop injection technology with reverse rinse and parallel purging enables rapid operation in NPOC mode.

Solids analysis (optional, manual)

• Non-catalytic high-temperature combustion with HT 1300
• Acid digestion module for TIC analysis in solids

Nitrogen analysis (optional)

• Simultaneous measurement of TOC and TNb
• ChD detector (integrated in the device)
• CLD-300 detector module (can be retrofitted)

Applications

• Surface water monitoring
• Wastewater and eluate analysis
• Analysis of groundwater, raw water and drinking water
• TOC cleaning validation in pharma industry

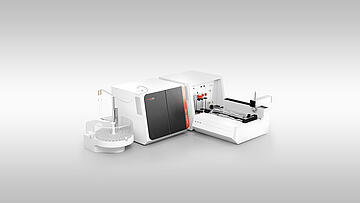

multi N/C 3300 duo

The highly sensitive TOC/TN_b analyzer with its integrated automated solids analysis function is ideal for contract laboratories that handle a wide range of sample types. High sensitivity across a broad working range makes it suitable for both high-matrix and pure water samples, as well as for less homogeneous solid samples. Robust loop injection technology with reverse rinse and parallel purging enables rapid operation in NPOC mode.

Solids analysis

• Automated non-catalytic high-temperature combustion at up to 1800 °C (with additives) in a ceramic combustion tube
• Optional: Acid digestion module for TIC analysis in solids

Nitrogen analysis (optional)

• Simultaneous measurement of TOC and TN_b
• ChD detector (integrated in the device)

Applications:

• Surface water monitoring
• Wastewater and eluate analysis
• Analysis of groundwater, raw water and drinking water
• Analysis of soils, contaminated sites, sediment, waste, construction debris

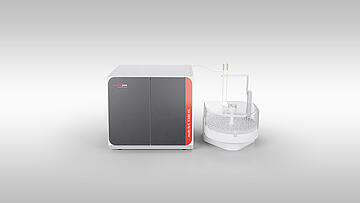

multi N/C 3300 HS

The TOC analyzer for applications at the ultra-trace level. By dosing directly from the syringe pump, the device can utilize high sample volumes of up to 3 mL, thereby achieving the highest sensitivity and repeatability when analyzing the lowest concentrations of TOC and TN.

Solids analysis (optional)

• Catalytic high-temperature combustion of quartz fiber swabs with the swab test module

Nitrogen analysis (optional, can be retrofitted)

• CLD-300 detector module

Applications:

• TOC and TN trace analysis
• Ultrapure water analysis (water for injection - WFI) in pharma industry
• Cleaning validation (last rinse, swab extraction and direct swab combustion)
• Analysis of boiler feed water and condensates in power plants

Technical Data

Order Information

Accessories

multiWin pro Software (Order number: 450-011.500)

The new intuitive software multiWin pro is your user cockpit, with all vital information presented on a single screen. It monitors all key system parameters, clearly presents the measurement results and enables comfortable and targeted operation thanks to its automated, user-friendly workflows. It also offers optional data integrity functions in accordance with FDA 21 CRF Part 11.

The software includes the following features:

• Sequence table: Live results update, option to measure a single sample using different methods
• Calibration: Automatic calibration during the measurement sequence with the calibration evaluation applied to subsequent sample measurements
• Easy Cal: Multi-point calibration from a single standard, including blank correction
• Reporting: Data evaluation and generation of result reports during an ongoing sequence; user-specific choice of units
• Conversion functions: Conversion of TOC results into CSB and BSB5 equivalents, TIC values into CO2 levels, and total nitrogen results into total protein contents
• Self-diagnostics: Automatic and permanent leakage monitoring as well as monitoring of input pressure and internal device pressure, tracking of maintenance intervals, furnace and Peltier temperature, as well as detector status (self-check system)
• Data export: Automatic or manual in LIMS, CSV and PDF formats

FDA 21 CFR Part 11 Compliance module for multiWin pro:
(Order number: 450-011.501)

• 21 CFR Part 11-compliant user management with user roles and assignment of individual permissions
• Electronic signatures (3-stage) for release of calibration reports, methods and analysis results
• Active Directory connection
• Audit trail with comprehensive filtering function to track changes made by users
• Configurable password rules
• IQ, OQ and PQ documentation optimized for pharmaceutical applications
• Software validation documentation and service provision by our support team, including certificate
