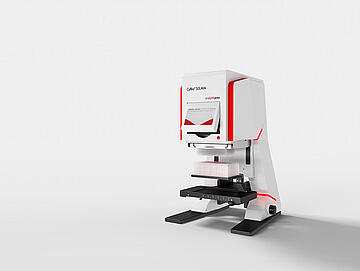

CyBio SELMA Semi-Automated Pipette 96- or 384-pipettor with minimal benchtop footprint
- Precise
- Replicable
- Easy to Use
Product Details

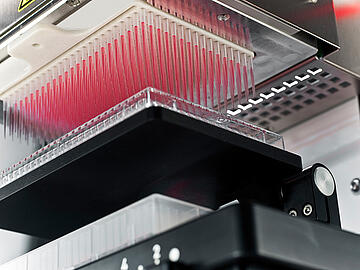

The CyBio SELMA is a precise, semi-automatic pipettor with 96 or 384 pipetting channels for easy and fast filling of 96- and 384-well microplates without the use of a computer. It is suitable for tasks such as replication and reformatting, medium exchange, and serial dilution.
- Fast and precise processing of 96- and 384-well microplates without a computer

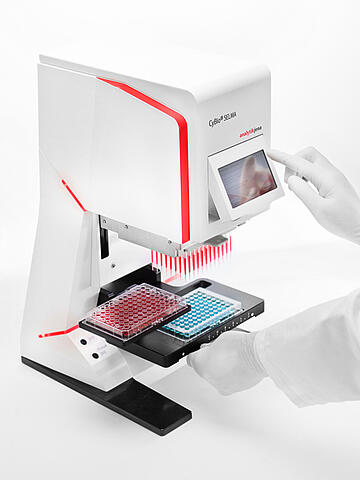

- Simple and intuitive handling with touch screen
- Easy and fast tip changing with ready to use CyBio TipTrays
- Error-free and reproducible results thanks to 96 or 384 parallel pistons and proven tip sealing principle
- Reminder function and automatic use of pipetting heights and parameters for the processing of several microplates
- An open design allows the use of external devices such as a shaker, vacuum chamber, heating adapters, etc.
- Applications, such as replication and reformatting of microplates & serial dilutions, can be executed in seconds
Product Information
CyBio SELMA | Manual Pipetting
Precise and semi-automatic pipettor with 96 pipetting channels for easy and fast filling of 96- and 384-well microplates without the use of a computer. Applications like replication and reformatting, medium exchange as well as serial dilution can be executed reproducible and convenient.
CyBio SELMA | Automation Pipetting
Precise and semi-automatic pipettor with 96 pipetting channels for easy and fast filling of 96- and 384-well microplates without the use of a computer. Applications like replication and reformatting, medium exchange as well as serial dilution can be executed reproducible and convenient.
CyBio SELMA | Dispensing
Precise and semi-automatic pipettor with 96 pipetting channels for easy and fast filling of 96- and 384-well microplates without the use of a computer. Applications like replication and reformatting, medium exchange as well as serial dilution can be executed reproducible and convenient.
Variants

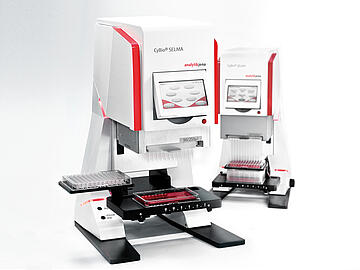

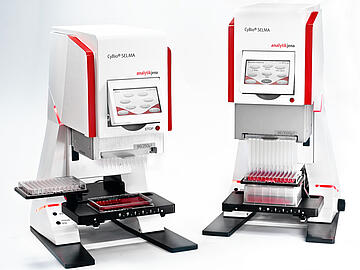

All variants of the CyBio SELMA are stand-alone semi-automated pipetting devices. However, each model works with different sized pipetting heads and microplates, as outlined below:
CyBio SELMA 96/25 µl
Includes a 96 channel pipetting head from 0.5 till 25 µl and 2 working positions for 96 well plates
CyBio SELMA 96/60 µl
Includes a 96 channel pipetting head from 1 till 60 µl and 2 working positions for 96 well plates
CyBio SELMA 96/250 µl
Includes a 96 channel pipetting head from 5 till 250 µl and 2 working positions for 96 well plates
CyBio SELMA 96/1000 µl
Includes a 96 channel pipetting head from 10 till 1000 µl and 2 working positions for 96 well plates
CyBio SELMA 384/25 µl
Includes a 384 channel pipetting head from 0.5 till 25 µl and 2 working positions for 384 well plates
CyBio SELMA 384/60 µl
Includes a 384 channel pipetting head from 1 till 60 µl and 2 working positions for 384 well plates
Specifications
| Pipetting heads | Precision* (cv in %) |
|---|---|
| 96/1000 µl pipetting head: | 25-100 µl ≤ 2% |
| 100-1000 µl ≤ 1% | |
| 96/250 µl pipetting head: | 10-25 µl ≤ 2% |
| 25-250 µl ≤ 1% | |
| 96- oder 384/60 µl pipetting heads: | 3-5 µl ≤ 2% |
| 5-60 µl ≤ 1% | |
| 96- oder 384/25 µl pipetting heads: | 2-5 µl ≤ 2% |
5-25 µl ≤ 1% |
*The specification of precision and trueness is based on the Analytik Jena internal gravimetric and photometric standard measurement procedure, which is published as Annex B7 in the ISO IWA 15 document ”Specification and method for the determination of volumetric performance of automated liquid handling systems“ (www.IWA15.org). The Application Note "Photometric and Gravimetric Liquid Handling Check Procedure to determine the Random Error (Precision) and the Systematic Error (Accuracy) of Automated Liquid Handling Systems (ALHS)“ describes this measuremet procedure in detail.
Every modification of this method may influence the results.
Technical Data
Weight
| CyBio SELMA 96: | about 33 lbs |
| CyBio SELMA 96/1000 µl: | about 44 lbs |
| CyBio SELMA 384: | about 33 lbs |
Plate formats
| CyBio SELMA 96: | CyBio SELMA 384: |
| 96 / 384 (optional accessories are available) | 384 |
Height (mm)
| CyBio SELMA 96: | 480 |
| CyBio SELMA 96/1000 µl: | 520 |
| CyBio SELMA 384: | 480 |
Pipet tips
| CyBio SELMA 96: | CyBio SELMA 384: |
| Disposable tips | Disposable tips |
Positions
| CyBio SELMA 96: | CyBio SELMA 384: |
| 2 | 2 |
Footprint (WxD in mm)
| CyBio SELMA 96: | CyBio SELMA 384: |
| 307 x 325 | 307 x 325 |
Pipette channels
| CyBio SELMA 96: | CyBio SELMA 384: |
| 96 channels in parallel | 384 channels in parallel |
Column wise pipetting
| CyBio SELMA 96: | CyBio SELMA 384: |
| yes (optional accessory) | yes (optional accessory) |
Volume Range (μl)
| CyBio SELMA 96: | CyBio SELMA 384: |
| 0.5 - 1000 | 0.5 - 60 |
Applications
- Plate Replication
- Plate Reformatting
- Cell culture medium exchange
- ELISA
- Reagent addition
- Plate coating
- Dilution
- DNA extraction
- HTRF Assay
| Applications | |
|---|---|
| Application Reports | Technical Reports |
Cardiotoxicity of iCell Cardiomyocytes Using the CyBi-SELMA 96, 250 μl Semi-automated Pipettor | |
CyBio SELMA – Basic Information using ARTEL Multichannel Verification System (MVS) | |
Accessories
8-channel magazine
The 8-channel tip magazine allows for serial dilutions and column-wise working with the CyBio SELMA..
384-well plate adapter
This microplate adapter allows positioning of 384-well microplates on both positions of the CyBio SELMA 96-channel versions. The adapter additionally supports working with 384-well disks by displaying the currently processed index.
Side-Touch Adapter
The Side-Touch adapter allows for a manual spring-loaded movement of the microplate in X- and Y- direction to perform a side-touch of the pipetting tips. After releasing the adapter, it will move back to a centered position for normal operation.
Microplate adapters for REMP plates or Protein Applications
With these microplate adapters, it is possible to process REMP plates or to prefill GREINER CrystalQuick plates and Hampton Research MRC 2 Well Plates for Protein Crystallization on the CyBio SELMA. The adapters position the microplates correctly under the tips and can be used on both CyBio SELMA pipetting positions.
Special CyBio SELMA Worktable
This special 2-splitted table will change working position 1 of the CyBio SELMA in order to work with high reservoirs and other accessories, like vacuum chambers.
Downloads
Brochure CyBio SELMA (English)
Open PDF
Brochure Lab Automation
Open PDF
Cardiotoxicity iCell on CyBio SELMA
Open PDF
Photometric and gravimetric liquid handling check procedure
Open PDF
Implementation of Cisbio
Open PDF
SELMA DNA Extraction from Plants
Open PDF
HTRF Assay Cisbio SELMA and Cybio RWS
Open PDF
Assay Cisbio SELMA and Cybio RWS
Open PDF
CyBio SELMA Basic Information
Open PDF
SELMA Precision
Open PDF| Title | Info |
|---|---|
| Manual CyBio SELMA (English) | PDF, 2 MB |
Application Reports
| Title | Info |
|---|---|
| Cardiotoxicity iCell on CyBio SELMA | PDF, 861 KB |
| Photometric and gravimetric liquid handling check procedure | PDF, 274 KB |
| Implementation of Cisbio | PDF, 429 KB |
| SELMA DNA Extraction from Plants | PDF, 437 KB |
Technical Reports
| Title | Info |
|---|---|
| HTRF Assay Cisbio SELMA and Cybio RWS | PDF, 388 KB |
| Assay Cisbio SELMA and Cybio RWS | PDF, 279 KB |
| CyBio SELMA Basic Information | PDF, 402 KB |
| SELMA Precision | PDF, 531 KB |
