Biometra Tank-Blotting Biometra Tankblot Eco-Line - Gentle blotting of challenging proteins
- Modular Tankblot system for blotting and electrophoretic applications
- Maximum transfer efficiency for large and native proteins
- Simultaneous blotting of up to 4 gels
Product Details
The Tankblot Eco-Mini and Tankblot Eco-Maxi are part of the modular Eco-Line product series, which allows 2 or 4 gels to be blotted simultaneously. The ultra-pure platinum electrodes are specially arranged on the side walls of the buffer tank to ensure uniform and reproducible transfer over a wide range of molecular weights. Profit by the unique design of the EBC buffer tank. Through the connections for an external cooling unit, the gels can be continuously cooled during the blotting process, the ideal prerequisite for a gentle transfer of temperature sensitive, native or very large proteins (> 100 kDa) even with long transfer times (> 24 h).
- Special electrode configuration for a homogeneous electric field
- High user comfort through color-coded blot cassettes
- The integrated cooling option (water circulation system) guarantees constant buffer temperature
The Electrophoresis Module for Eco-Mini and Eco-Maxi are available separately and will convert the corresponding tank blotting systems into powerful PAGE electrophoresis systems.

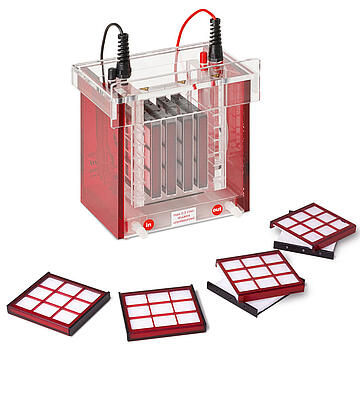

Tankblot Eco-Mini
Tankblot Eco-Mini is designed to transfer up to four PAGE mini-gels (up to 9.5 cm x 8.5 cm) in separate blotting cassettes simultaneously. The special design of the blotting cassettes allows easy assembly and loading into the blot module. Additional the assembly defends blotting sandwiches from squeezing.

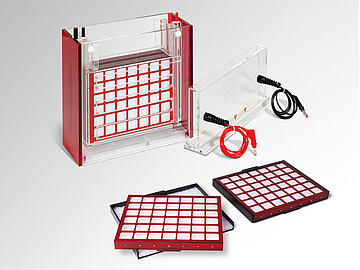

Tankblot Eco-Maxi
Tankblot Eco-Maxi is the large version for gel sizes up to 22 cm x 19 cm. The system offers the capacity of multiple transfers: several small gels or 1 large gel per cassette. Up to 2 large gels can be transferred simultaneously in separate blotting cassettes. The special design for fixing the blotting sandwich in the blotting cassette prevents squeezing and allows easy handling.
Technical Data
| Tankblot Eco-Mini | Tankblot Eco-Maxi |
|---|---|---|
| Electrode | Platinum | Platinum |
| Transfer time | 60–120 min | > 60 min |
| Capacity of device | 4 mini gels | 2 maxi gels |
| Blotting area (W x D) | 8.0 x 9.4 cm | 22.0 x 19.0 cm |
| Transfer buffer requirement | 2100 ml | 6100 ml |
| Cooling option | Yes | Yes |
| Max. flow rate | 0.5 - 1 l/min | 0.5 - 1 l/min |
| Dimensions (W x D x H) | 21.0 x 15.0 x 25.0 cm | 32.5 x 15.0 x 40.0 cm |
| Electrode distance | 10 cm | |
| Max. Voltage | 100 V | 60 V (Buffer tank EB) 100 V (Buffer tank EBC) |
| Max. Current | 300 mA | 1000 mA (Buffer tank EB) 1000 mA (Buffer tank EBC) |
| Max. Power | 30 W | 60 W (Buffer tank EB) 130 W (Buffer tank EBC) |
| Max. Operation Temperature | 50 °C | 50 °C |
| Weight | max. 2.5 kg (depending on the buffer tank) | max. 8 kg (depending on the buffer tank) |
| Power supply | P25/P25T | P25/P25T |
Order Information
| Order number | Item |
|---|---|
| Tankblot Eco-Mini | |
| 846-018-100 | Tankblot Eco-Mini C, complete instrument with integrated cooling base, Blot Module, 4 Blotting Cassettes and 8 foam pads |
| 846-018-101 | Tankblot Eco-Mini, complete instrument (without cooling base), Blot Module, 4 Blotting Cassettes and 8 foam pads |
| Accessories Tankblot Eco-Mini | |
| 846-017-170 | Eco-Mini buffer chamber EB (without cooling base), without safety lid |
| 846-017-171 | Eco-Mini buffer chamber EBC(with integrated cooling base), without safety lid |
| 846-017-172 | Eco-Mini safety lid |
| 846-018-105 | Blot Module Eco-Mini, incl. 4 Blotting Cassettes |
| 846-018-111 | Blotting Cassette, 1/pkg |
| 846-018-113 | Foam pads, 4/pkg |
| 846-017-175 | Electrophoresis Module for Eco-Mini (2 gels) |
| Tankblot Eco-Maxi | |
| 846-018-400 | Tankblot Eco-Maxi C, complete system with buffer chamber EBC (with integrated cooling base), Bigfoot Safety Lid, 2 Blotting Cassettes (black/red), each for 1 gel with size 22 cm x 19 cm, 4 foam pads |
| 846-018-401 | Tankblot Eco-Maxi, complete system with buffer chamber EB (without cooling base), Bigfoot Safety Lid, 2 Blotting Cassettes (black/red), each for 1 gel with size 22 cm x 19 cm, 4 foam pads |
| Accessories Tankblot Eco-Mini | |
| 846-017-471 | Buffer chamber EB (without cooling base) for Eco-Maxi and Tankblot Eco-Maxi, without Bigfoot Safety Lid |
| 846-017-472 | Buffer chamber EBC (with integrated cooling base) for Eco-Maxi and Tankblot Eco-Maxi, without Bigfoot Safety Lid |
| 846-017-474 | Bigfoot Safety Lid for Eco-Maxi and Tankblot Eco-Maxi |
| 846-017-475 | Electrophoresis Module for Eco-Maxi (2 gels) |
| 846-018-405 | Blot Module Eco-Maxi for up to 2 Blotting Cassettes (black/red), each for 1 gel with size 22 cm x 19 cm and 4 foam pads |
| 846-018-411 | Blotting Cassette, colour coded (black/red), for Tankblot Eco-Maxi Blot Module, 1/pkg |
| 846-018-413 | Foam pads for Tankblot Eco-Maxi Blotting Module, 4/pkg |
| Blotting Paper | |
| 846-B3030931 | Whatman 3MM Chr, 580 mm x 680 mm, 0.34 mm thick, 100/pkg |
| 846-B3017915* | Whatman 17 Chr, 460 mm x 570 mm, 0.92 mm thick, 25/pkg |
| 846-B10 426 981* | Whatman GB005, 200 mm x 200 mm, 1.5 mm thick, 25/pkg |
* Please note that the product is discontinued. A sale is only possible while stocks last.

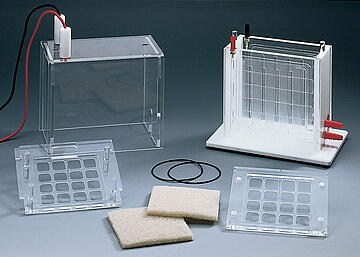

Please note: Vacu-Blot is discontinued. Accessories are yet available.
| Order number | Item |
|---|---|
| Accessories Biometra Vacu-Blot | |
| 846-053-002 | Rubber sheets (280 mm x 280 mm) for Vacu-Blot, 3 pieces |
| 846-053-004 | Porous filter plate for Vacu-Blot |
| 846-010-057 | Clips (1 set), 6 pieces |
Order information on suitable power supplies and adapters can be found here.
