This product has been discontinued and replaced by the UVP BioSpectrum Advanced.

Small Animal Imaging System iBox Scientia

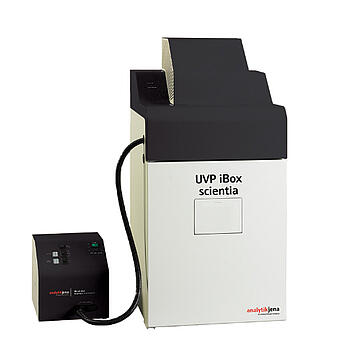

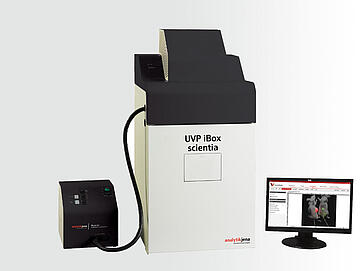

UVP iBox Scientia Small Animal Imaging System

  • Selection of high resolution, high sensitivity CCD cameras for in vivo imaging
  • Motorized optics for setting the aperture, zoom and focus
  • Unique viewing window enables quick sample inspection
  • Matched emission/excitation filter sets specifically for non-invasive small animal imaging
  • Automated control of the five-position emission filter array to allow addition of emissions for visible, IR and UV to meet all spectral requirements

Product details

The UVP iBox Scientia Small Animal Imaging System is designed to automate your in vivo imaging research. The system enables non-invasive detection of fluorescent and bioluminescent reporters in mice. The one-touch pre-set or user-defined controls are easy to use for accurate, repeatable imaging.

Darkroom

  • Light tight darkroom creates optimum imaging conditions
  • Unique viewing window is UV blocking for quick sample inspection
  • Automated control of the five-position emission filter array
  • Power lift is adjustable to any setting in a ten-inch travel range (manual lift also available); automated calibrating home position synchronizes the power lift at start-up

Warming Plate

The warming plate provides a platform for maintaining a regulated temperature of small animals to prevent hypothermia. The stable temperature enables consistent day-to-day results.

UVP eLITE MultiSpectral Source

  • External power supply houses the eight-position filter wheel
  • Automation features control the filter wheel and six intensity positions
  • Fiber optic light source connects through the darkroom port for epi or transillumination
  • Matched excitation/emission green fluorescent protein (GFP) and red fluorescent protein (RFP) excitation filter are included; other filter sets available

Software Interface

  • Software automates your research for easy, yet accurate and repeatable results
  • Controls the eLITE, darkroom’s epi and transillumination UV and white light, emission filter selection and system power
  • Allows selection of user-defined or default settings
  • Set templates and user preferences for recurring experiments

Applications

Pharma & Life Science

Show applications

Applications

Technical Data

Specifications / FeaturesUVP iBox Scientia
Camera/LensBioCam 900
  • 1024 x 1024
  • 1.0 Megapixels
  • >90% (Visible)
  • 25mm f/0.95
  • USB 2.0 PC Connection
OptiChemi 695
  • 2750 x 2200
  • 6.05 Megapixels
  • 25mm f/0.95
  • USB 2.0 PC Connection
  • Real time, live preview of images
Darkroom features
  • Light tight
  • Wide access door with UV safety shutoff
  • Gel viewing window
  • Sliding tray for optional transilluminator
  • Epi white and UV illumination (365 nm and 480 nm)
Stage
  • Temperature: 33°C - 40°C, preset to 37°C at factory
  • Temperature over limit switch: Prevents unit from going above 41°C
  • Accuracy: 1°C of readout temperature
  • Variance: Not to exceed 2°C over marked area
  • Display: LCD, digital, non-illuminating
  • Physical Dimensions (HxWxD): 3.5” x 11.5” x 8” (8.89 x 29.21 x 20.32 cm)
Emission Filters - Five Positions
  • Green Fluorescent Protein (GFP)
  • Red Fluorescent Protein (RFP)
UVP eLITE MultiSpectral Light Source
  • Power source housing external to darkroom
  • 150 watt light source
  • Fiber optic bundles connect to either epi or transillumination light sources
  • Eight excitation filter positions - GFP and RFP included (additional filters available)
  • Manual or software controlled
Software
  • Interface for automated controls
  • VisionWorks Acquisition and Analysis Software
  • Software requires Microsoft Windows 7, 8, or 10 (32-bit or 64-bit) operating systems

Order Information

Order numberDescription
115 V230 VNameCamera Lens
97-0615-0197-0615-02UVP iBox Scientia 900Bioluminescence 900 Camera25mm f/0.95 Motorized Lens
97-0729-0197-0729-02UVP iBox Scientia 695OptiChemi 695 Camera 25mm f/0.95 Motorized Lens

*Anesthesia Kit and Computer sold separately

Downloads

UVP iBox Scientia Brochure

Open PDF

Filter Selection Chart for Studio Systems

Open PDF

2022 iBox Scientia Promos

Open PDF
