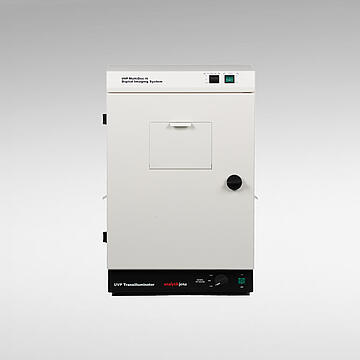

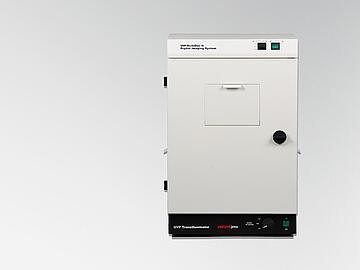

UVP MultiDoc-It Gel Visualizer Easy Gel Documentation

  • High resolution digital camera
  • Capture software for easy gel documentation
  • Model with overhead UV lamps for Thin Layer Chromatography (TLC)

Product Details

The MultiDoc-It gel visualizer connects to your computer for easy gel documentation. The high resolution digital camera is controlled by Analytik Jena's exclusive capture software. The unique modular design allows for optional overhead UV lamps for TLC.

System Capabilities

  • DigiCam digital color camera with 24 megapixel resolution

  • Select models include side access doors for cutting or moving gels without opening the front door

  • Modular for adding optional overhead UV lamps

  • Capture software enables live preview of images

Applications and Software

The UVP MultiDoc-It is an affordable option for gel imaging of stained gels. The darkroom comes assembled with choice of UV transilluminator and UV safety shut off switches triggered by opening the door. The exclusive software controls the camera functions, live preview of images, image capture and image enhancement. For brilliant color TLC gel imaging of samples such as Ginkgo Biloba, the UVP MultiDoc-It TLC model is available. The model includes two UVGL-25 UV Lamps for placement overhead inside the darkroom (no transilluminator is included with this model).

Technical Data

UVP MultiDoc-It
Illumination

UV Transillumination
Optional overhead UV lamps

FilterOne Position
Camera Resolution24 MP
Dimensions (L x W x H)12.7 x 14 x 19 in.

Order Information

Order numberDescription
115 V230 VModel
97-0192-0497-0192-05UVP MultiDoc-It Imaging System, 3 Door Model, w/ M-20 Transilluminator (20 x 20 cm Filter, 302 nm UV)
97-0193-0497-0193-05UVP MultiDoc-It Imaging System, 3 Door Model, w/ LM-20 Transilluminator (20 x 20 cm Filter, 302/365 nm UV)
97-0194-0497-0194-05UVP MultiDoc-It Imaging System, 3 Door Model, w/ M-26 Transilluminator (21 x 26 cm Filter, 302 nm UV)
97-0195-0497-0195-05UVP MultiDoc-It Imaging System, 3 Door Model, w/ LM-26 Transilluminator (21 x 26 cm Filter, 302/365 nm UV)
97-0196-0497-0196-05UVP MultiDoc-It Imaging System, 3 Door Model, w/ LMS-20 Transilluminator (20 x 20 cm Filter, 254/302/365 nm UV)
97-0197-0497-0197-05UVP MultiDoc-It Imaging System, 3 Door Model, w/ LMS-26 Transilluminator (21 x 26 cm Filter, 254/302/365 nm UV)
97-0198-0497-0198-05UVP MultiDoc-It Imaging System, 3 Door Model, w/ M-26XV Transilluminator (25 x 26 cm Filter, 302 nm UV)
97-0199-0497-0199-05UVP MultiDoc-It Imaging System, 3 Door Model, w/ FL-20 Transilluminator (20 x 20 cm Filter, 302 nm UV)
97-0200-0497-0200-05UVP MultiDoc-It Imaging System, 3 Door Model, w/ FL-26 Transilluminator (21 x 26 cm Filter, 302 nm UV)

97-0201-04

97-0201-05UVP MultiDoc-It Imaging System, 3 Door Model, w/ FL-26X Transilluminator (25 x 26 cm Filter, 302 nm UV)

97-0202-01

97-0202-02UVP MultiDoc-It Imaging System, TLC Model, w/ UV Lamps (No Transilluminator)
Accessories
Order numberDescription
89-0069-06Digital Thermal Printer (115 V)
89-0069-07Digital Thermal Printer (230 V)
89-0038-01Thermal Paper, 4 Rolls (800 Images)

Downloads

Brochure-UV Lab Catalog

Open PDF

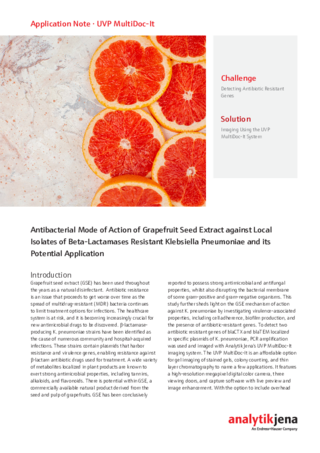

Appnote - Antibacterial Mode of Action of Grapefruit Seed Extract against Local isolates of Beta-Lactamases Resistant Klebisella pneumoniae and its Potent

Open PDF

Appnote_UVP MultiDoc-It-Molecular Detection of Bovine alphaherpes virus type 1.1

Open PDF
