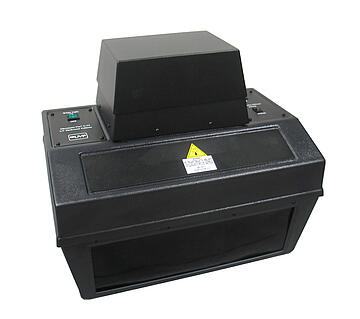

UVP ChromaDoc-It Thin Layer Chromatography (TLC) Viewing Cabinet with Camera

  • High resolution Digi Camera
  • Capture software for easy gel documentation
  • Low profile viewing cabinet includes overhead UV

Product Details

The UVP ChromaDoc-It System connects to your computer for easy documentation of thin layer chromatography. The lightweight viewing cabinet is perfect for TLC applications with overhead 15-watt 254 nm and 365 nm UV illumination. The high resolution Digi Camera is controlled by Analytik Jena's exclusive capture software. The software enables live preview of images, user defined default settings and templates, annotations, use of filters, and report generation.

System Features

  • DigiCam - digital color camera with 24 megapixel resolution

  • Lightweight cabinet

  • 254 nm and 365 nm overhead UV illumination

  • Capture software enables live preview of images

Technical Data

UVP ChromaDoc-It
Illumination

254 nm and 365 nm overhead UV
Interior white light

FilterOne Position
Camera Resolution24 MP
Dimensions (L x W x H)16.5 x 19.75 x 15.38 in.

Order Information

Order numberDescription
115 V230 VModel

97-0109-01

97-0109-02UVP ChromaDoc-It Imaging System
Accessories
Order numberDescription
34-0008-01Replacement Tube - 15-watt, 254 nm
34-0009-02Replacement Tube - 15-watt, 365 nm
34-0066-01Replacement Tube - 4-watt, white
89-0069-06Digital Thermal Printer (115 V)
89-0069-07Digital Thermal Printer (230 V)
89-0038-01Thermal Paper, 4 Rolls (800 Images)

Downloads

Brochure-UV Lab Catalog

Open PDF

Appnote - UVP ChromaDoc-it - Antifungal Activity in Winter Squash Fruit Peel in Relation to Age Related Resistance to Phytophthora capsici

Open PDF
