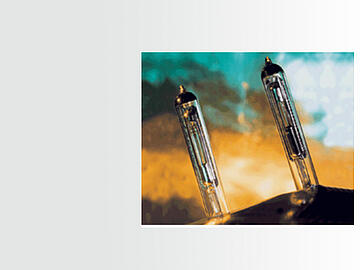

Zinc and Cadmium Lamps

Zinc/Cadmium Lamps

  • Zinc lamps can also substitute for deuterium lamps in some applications due to the zinc lamps' superior thermal stability, long life and prominent 214 nm energy peak
  • The electrical leads enter the lamp base either at the perimeter of the base (side/radial leads) or straight into the center of the base (end/axial leads)
  • Lead lengths are also optional

Product Details

Zinc and Cadmium Lamps are designed primarily for use with UV absorption cells and detectors and are frequently used in air pollution monitoring devices.

Applications include:

  • Air pollution monitoring
  • Analytical instrumentation
  • Wavelength calibration
  • Spectroscopy

Order Information

Zinc and Cadmium Lamps
Part NumberLighted
Length		Total
Length		Quartz
Diameter		Handle
Diameter		Gas FillCord Length/
Connector		SpecialRecommended
Power Supply
90-0069-050.79"
(20 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleZinc8" (203 mm)
Stripped		8" (203 mm)
Radial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)

90-0069-060.79"
(20 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleZinc8" (203 mm)
Stripped		8" (203 mm)
Axial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)

90-0069-070.79"
(20 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleZinc12" (304.8 mm)
Stripped		12" (305 mm)
Radial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)

90-0069-100.79"
(20 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleZinc8" (203 mm)
Stripped		8" (203 mm)
Radial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)

90-0069-110.79"
(20 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleZinc17" (431.8 mm)
Stripped		17" (431.8 mm)
Axial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)

90-0069-120.79"
(20 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleZinc8" (203 mm)
Stripped		8" (203 mm)
Radial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)

90-0069-140.79"
(20 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleZinc14" (355.6 mm)
Stripped		14" (355.6 mm)
Axial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)

90-0069-150.79"
(20 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleZinc8" (203 mm)
Stripped		8" (203 mm)
Radial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)

90-0069-160.79"
(20 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleZinc12" (304.8 mm)
Stripped		12" (304.8 mm)
Axial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)

90-0071-030.94"
(24 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleCadmium8" (203 mm)
Stripped		8" (203 mm)
Radial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)

90-0071-060.94"
(24 mm)		4.33"
(110 mm)		0.70"
(17.8 mm)		No HandleCadmium8" (203 mm)
Stripped		8" (203 mm)
Axial Leads		PS-9
99-0033-01 (115 V)
99-0033-02 (230 V)
