Pen-Ray Grid Lamps

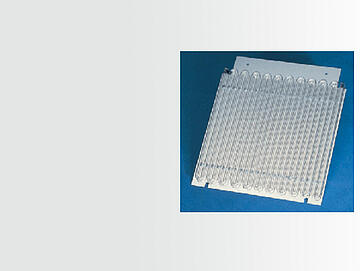

UVP Pen-Ray Grid Lamps

  • Manufactured with standard or ozone free quartz materials, grid lamps provide excellent irradiance uniformity over the entire grid area
  • Custom reflectors and configurations are available
  • The intensity at 254 nm wavelength is from 14 to 20+ milliwatts/cm2 at 1 inch using the recommended power supply
  • Grids are available for flat panel display applications

Product Details

UVP Pen-Ray Grid Lamps are designed for stable, low noise operation. They emit a 254 nm mercury emission spectra and are made with standard or ozone free quartz. Grids supply excellent uniformity over the entire area. Sizes available from 2 x 2" to 12 x 12". Custom reflectors and configurations are available.

Applications include:

  • Curing
  • Eprom Eraser
  • Transillumination
  • OEM applications

Order Information

Contact Analytik Jena US for Part Numbers or for information on adding wiring and reflectors to the grids.

Dimensions
2W" x 6L"
(51 x 152 mm)
3W" x 6L"
(76 x 152 mm)
4W" x 8L"
(102 x 203 mm)
5W" x 8L"
(127 x 203 mm)
8W" x 8L"
(203 x 203 mm)
10W" x 10L"
(254 x 254 mm)
12W" x 12L"
(305 x 305 mm)
