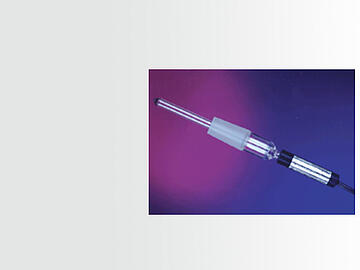

safe, low pressure PCQ Photochemical Pen-Ray lamps

Photochemical Lamps

These PCQ lamps emit approximately 90% of their radiation at 254 nm which makes them especially suited to photochemical requirements.

  • A 24 - 40 mm ground glass taper joint is standard

  • Custom lighted lengths are available

  • Manufactured of high grade mercury quartz

Product Details

To address heat production and safety concerns relating to high pressure UV light sources for use in photochemistry, Analytik Jena US manufactures a full line of safe, low pressure Photochemical Quartz (PCQ) Pen-Ray lamps.

Order Information

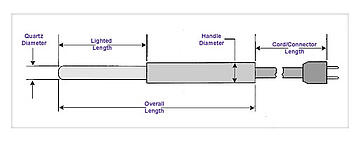

Photochemical Quartz (PCQ) Lamps
Part NumberLighted
Length		Total
Length		Quartz
Diameter		Handle
Diameter		Primary
Output		Cord Length/
Connector		Recommended
Power Supply
90-0049-012.5"
(63.5 mm)		8.38"
(212.8 mm)		0.375"
(9.5 mm)		0.625"
(15.875 mm)		254 nm16" (406.4 mm)
Std conn.		PS-4
99-0004-01 (115 V)
99-0004-02 (230 V)
90-0049-024"
(101.6 mm)		9.88"
(250.9 mm)		0.375"
(9.5 mm)		0.625"
(15.875 mm)		254 nm16" (406.4 mm)
Std conn.		PS-4
99-0004-01 (115 V)
99-0004-02 (230 V)
90-0049-036"
(152.4 mm)		11.88"
(301.752 mm)		0.375"
(9.5 mm)		0.625"
(15.875 mm)		254 nm16" (406.4 mm)
Std conn.		PS-4
99-0004-01 (115 V)
99-0004-02 (230 V)
90-0049-0711"
(279.4 mm)		16.88"
(428.752 mm)		0.375"
(9.5 mm)		0.625"
(15.875 mm)		254 nm16" (406.4 mm)
Std conn.		PS-4
99-0004-01 (115 V)
99-0004-02 (230 V)



Downloads

Brochure-UV Lab Catalog

Open PDF
