CP Series Calibration Lamps

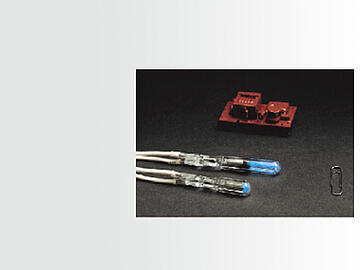

UVP CP Series Calibration Lamps

  • High grade quartz and mercury components
  • Extremely small dimensions without handles for portable and/or limited design space applications
  • Provide the full mercury spectrum
  • Can be operated by the 44-0002-01 DC power supply
  • Custom leads are available

Order Information

UVP CP Series Calibration Lamps
Part NumberLighted
Length		Total
Length		Quartz
Diameter		FeaturesRecommended
Power Supply (DC)
30-0056-010.81"
(20.6 mm)		2.74"
(69.6 mm)		0.375"
(9.5 mm)		254 nm, no lamp handle
9 V battery optional		44-0002-01
30-0057-010.06"
(1.5 mm)		1.85"
(47.0 mm)		0.375"
(9.5 mm)		254 nm, no lamp handle
9 V battery optional		44-0002-01



Downloads

Brochure-UV Lab Catalog

Open PDF
