Multiple Ray Lamp

UVP Multiple Ray Lamps

  • The unique design of this lamp allows the user to pivot the lamp from 1 inch up to 17 inches from the work surface

  • Lamp includes five tubes in different interchangeable wavelengths for use in many applications

  • Shortwave UV (254 nm) light sources

  • Longwave filtered and unfiltered UV (365 nm) light sources

  • Cool white and north sky (daylight) tubes

Product Details

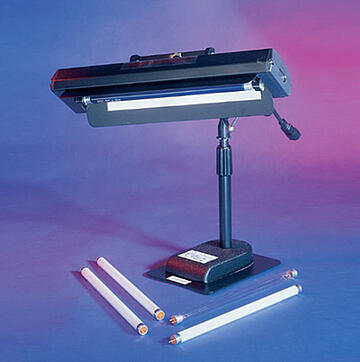

Unique design of the UVP Multiple Ray Lamp allows users to pivot the lamp or change the height to three positions. Minimal size is excellent for benchtop use.  Lamp includes five tubes in different interchangeable wavelengths for use in varying applications making this lamp a versatile lamp for many industrial and laboratory applications.

Light sources include: shortwave UV (254 nm), longwave filtered and unfiltered UV (365 nm), cool white and north sky (daylight) tubes.

*Product performance and effectiveness will depend on the user.*



Technical Data

Specifications
UV Source

254 nm, 365 nm filtered, 365 nm unfiltered

White Light

Cool white, North Sky (daylight)

Watts

Eight watt



Order Information

Part Numbers
115 V230 VModel
95-0313-0195-0313-02MRL-58
Replacement Parts / Accessories
34-0006-01Tube, 8 Watt, Longwave
34-0031-01Tube, 8 Watt, Longwave, filtered BLB, 365 nm
34-0007-01Tube, 8 Watt, Shortwave, 254 nm
34-0056-01Tube, 8 Watt, Cool White
34-0056-02Tube, 8 Watt, Warm White
34-0042-01Midrange, 302 nm (optional)

Downloads

Multiple-Ray_Lamp_Operating_Instructions.pdf

Open PDF

Brochure-UV Lab Catalog

Open PDF
