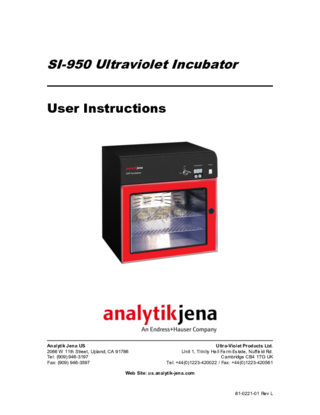

UVP Incubator Precise temperature control and excellent temperature uniformity
- Minimal benchtop space
- Microprocessor controlled for excellent temperature uniformity
- Reliable source of shortwave (254nm) UV light
- Three position adjustable shelves
Product Details
The UVP Incubator provides precise temperature control and uniformity for the incubation of biological assays, fungal, bacterial cultures, eggs and other samples up to 68 °C. The instrument is equipped with built-in overhead shortwave 254nm UV tubes above the incubation chamber. Furthermore the interior of the instrument is made of stainless steel and easy to clean using non-abrasive mild detergents. Users are protected from UV radiation by the incubator door; the door blocks UV light, preventing UV radiation from passing through. The UVlamp will shut off if the door is opened. The instrument is delivered with two shelves made of stainless steel that can be adjusted at three different positions. This flexibility can be used for simultaneous incubation of various samples at different heights.
*Product performance and effectiveness will depend on the user.*
Technical Data
| Technical Data | |
|---|---|
Controller | PI |
Setpoint | Digital |
Display | Digital LED |
Temperature Range | RT +3 °C to 68 °C |
Temperature Sensor | LM345 Integrated Temperature Sensor |
Temperature Accuracy | +1 °C |
Temperature Uniformity | +0.5 °C to 37 °C |
Interior volume | 26.9 liters |
Average Relative Humidity | ~ 80% |
Interior | Stainless steel |
Exterior | Aluminum powder coated |
Door | Acrylic |
Exterior W x H x D | 44.5 x 43.2 x 35.6 cm |
Interior W x H x D | 35.6 x 27.2 x 27.7 cm |
Dimensions shelves (W x D) | 33.8 x 21.6 cm |
Construction shelves | Formed stainless steel |
Surface area shelves | 729.35 cm2 |
Heating Element | 1.250 Watts |
Weight | 21.3 kg |
Max. Power Consumption | 115 V 60 Hz, 230 V 60 Hz or |
Working conditions | 5 °C to 40 °C, max. 2.000 m NN |
Order Information
Previous description: UI 950
| Order number | Description |
|---|---|
| 95-0358-01 (US) 849-30005-4 (EU) | UVP Incubator, 115 V, US |
| 95-0358-02 (US) 849-30005-2 (EU) | UVP Incubator, 230 V, UK + EU |
| 95-0358-03 (US) 849-30005-5 (EU) | UVP Incubator, 100 V |
| Optional Accessories | ||
|---|---|---|
| Order number | Description | Quantity |
| 53-0178-04 (US) | Key, replacement | 1 |
| 34-0007-01 (US) 849-00015-0 (EU) | Tube, 8-watt, 254 nm shortwave UV lamp | 1 |
| 10-0341-08 (US) 849-30201-0 (EU) | Shelf, stainless steel ventilated | 1 |
| 98-0002-04 (US) 849-20602-0 (EU) | Face Shield, UV blocking (UVC-803) | 1 |
| 97-0015-02 (US) 849-00011-0 (EU) | UVX Radiometer | 1 |
| 97-0016-01 (US) 849-00012-0 (EU) | UVX Sensor (UVX-25) | 1 |
