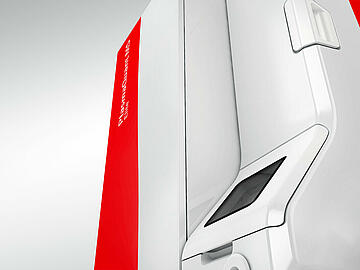

PlasmaQuant MS Header

PlasmaQuant MS – ICP-MS Analyzer

  • Sensitive – 1500 Mcps/ppm at <2 % CeO
  • Cost-effective – half the argon consumption
  • Fast – 50 % higher sample throughput
  • Robust – matrix-independent long-term stability
  • Versatile – optimized for research and routine use

Product Details

Faster, more sensitive, less expensive ICP-MS analysis for modern laboratories

Both research and routine laboratories with the highest efficiency and detection standards benefit from the PlasmaQuant MS series of ICP-MS instruments in three ways: market-leading sensitivity, the highest sample throughput, and the lowest costs per sample. These three benefits combine to provide a complete package that equips laboratories with great competitive advantages.

Sensitivity and efficiency

The unparalleled level of sensitivity of the PlasmaQuant MS provides you with analytical advantages that are clearly reflected in efficiency and lower costs per sample.

  • Best detection limits
  • High throughput
  • Reduced sample preparation
  • Robust performance
  • Low maintenance requirements

The patented spectrometer design of the ICP-MS systems provides for the lowest detection limits and consistent analytical quality for extremely short integration times and high dilution factors. This ensures high throughput, long-term stability, and reproducible results, while significantly reducing your maintenance costs.

The combination of high sensitivity, high scanning speeds, and short integration times is perfect for laser ablation and single particle analysis. In addition, the outstanding mass separation feature provides the best conditions for isotope analysis.

Configure your personal ICP-MS instrument

The PlasmaQuant MS series offers four models optimized for individual application requirements. Together with a range of upgrade options and accessories, the systems can be optimally adapted to the respective field of application.

PlasmaQuant MS – Product Animation

The PlasmaQuant MS from Analytik Jena sets standards in ICP-MS analysis. Its superior performance is achieved through the synergy of innovative technologies –  from the plasma system, to the highly efficient three-dimensional focusing of the ions in the high-resolution quadrupole, to the fully digital detection of ions.

ICP-MS Technology Highlights

Learn more: PlasmaQuant MS Technology Highlights

LC-ICP-MS

Learn more

What Our Customers Say

Major cost savings for Blumenfield Science

"We chose PlasmaQuant MS because it offers high sensitivity for the identification of metals from a broad spectrum of liquid and solid samples with diverse and complex matrices. An additional factor is the short analysis time. Argon consumption is low compared with other ICP-MS devices, which has led to substantial costs savings for us."

WATCH THE VIDEO

ICP-MS for research purposes at the University of Münster

"In order to answer our questions we need an instrumentation with high detection power, short measurement times, high spectral resolution and spatial resolution. Only instrumentation that fulfills these requirements can help to answer our questions."

WATCH THE VIDEO

PlasmaQuant MS series Choose the best ICP-MS instrument for your needs

PlasmaQuant MS models

ICP-MS for efficient routine analysis

PlasmaQuant MS
The robust system for efficient and stable characterization of high matrix samples:

  • Outstanding plasma robustness for high matrices
  • Minimized drift at changing matrix load
  • Efficient interference management with outstanding ease of use


PlasmaQuant MS Q
The fast system for high-throughput analysis and superior precision for large sample batches:

  • High sensitivity for optimized data acquisition
  • Universal interference management mode
  • 11 orders of dynamic range for full coverage of required concentration range


PlasmaQuant MS Elite models

ICP-MS instruments for demanding material analysis and advanced research

PlasmaQuant MS Elite SThe high sensitivity analyzer for routine ultratrace element detection in clean sample matrices:

  • Ultra-sensitive and stable performance for best signal-to-noise ratio
  • High ion transmission with full sensitivity control on complete mass range
  • Market leading abundance sensitivity

PlasmaQuant MS Elite
The flexible system with ultimate sensitivity and targeted performance optimization using various accessories for advanced research:

  • Ultimate freedom of optimization through full ion focus control
  • Shortest dwell time and best mass separation
  • Flexible connection of accessories using two entry ports to the plasma compartment


Applications

Environment

Show applications

Applications

  • Speed Up Your Work – High-throughput Analysis of Drinking Water with ICP-MS (English)

    Open application

  • Determination of Trace Elements in Seawater using ICP-MS

    Open application

  • Determination of Hg in Environmental Waters Using the PlasmaQuant MS Elite (English)

    Open application

  • Monitoring Drinking Water Quality with the PlasmaQuant MS (English)

    Open application

  • Hochdurchsatz-Analyse von Trinkwasser mit ICP-MS (German)

    Open application

  • Analysis of Marine Sediments and Sewage Sludge by PlasmaQuant MS (English)

    Open application

  • Bestimmung von Quecksilber im Ultraspurenbereich mit ICP-MS (German)

    Open application

  • Analyse von Meeressedimenten und Klärschlamm mit dem PlasmaQuant MS (German)

    Open application

  • Direct analysis of samples with high matrix (25 % NaCl) using the PlasmaQuant MS (English)

    Open application

Food & Agriculture

Show applications

Applications

Chemicals & Materials

Show applications

Applications

  • Determination of Trace Elements in Toys

    Open application

  • Elemental Mapping of Printed Ink Using the J200 Tandem LA - LIBS Instrument in Combination with the PlasmaQuant MS Elite ICP-MS (English)

    Open application

  • Achieving Ultra-Sensitive Inductively Coupled Plasma – Mass Spectrometry (LA-ICP-MS) Analysis with the J200 LA Instrument: A Glass Sample Study (English)

    Open application

  • Achieving Lowest Detection Limits Using the PlasmaQuant MS Elite S ICP-MS (English)

    Open application

Power & Energy

Show applications

Applications

  • Determination of Trace Elements in Lithium-containing Borated Waters Coming from Nuclear Power Plants (English)

    Open application

Pharma & Life Sciences

Show applications

Applications

  • BOOSTing limits of detection for chromium and other trace elements in whole blood (English)

    Open application

  • Iron Isotope Ratios in Human Whole Blood by PlasmaQuant MS (English)

    Open application

  • Elemental impurities in Pharmaceutical Materials according to new ICH Guidelines and USP Chapters and (English)

    Open application

  • Analysis of Low Level Beryllium in Urine Using the PlasmaQuant MS (English)

    Open application

  • Achieving Lowest Detection Limits Using the PlasmaQuant MS Elite S ICP-MS (English)

    Open application

  • Metals Content in Eye Drops and Contact Lens Solutions by ICP-MS (English)

    Open application

Geology, Mining & Metals

Show applications

Applications

  • Determination of Trace Elements in Copper by ICP-MS (English)

    Open application

  • Analysis of Metal Alloys using LA-ICP-MS

    Open application

  • Analysis of Rare Earth Elements in Geological Reference Materials on the PlasmaQuant MS Elite (English)

    Open application

  • Trace Metals Analysis in High Purity Gold Using ICP-MS PlasmaQuant MS Elite (English)

    Open application

  • Speciation of Arsenic in Apple Juice by LC-ICP-MS on PlasmaQuant MS Elite

    Open application

ASpect MS Software Package

With the intuitive worksheet interface of the ASpect MS software for the ICP mass spectrometers of the PlasmaQuant MS series, you can retrieve all analysis data, mass scan graphs, calibration data, and data logs with a single click of the mouse. Detailed quality assurance protocols guarantee accurate data for reliable analysis. ASpect MS provides compliance support in accordance with 21 CFR Part 11.

Simple to operate thanks to intelligent automation options

  • Set-up and initialization processes
  • Plasma alignment
  • Mass calibration and resolution tests
  • AutoMax for simple method development
  • Integrated aerosol dilution for the online dilution of samples with a high TDS content
  • BOOST technology for high sensitivity in gas mode (interference management)

Accessories

A range of accessories and upgrade options provide broad application flexibility, easy sample handling, and a high throughput

Learn more about other sample introduction accessories for PlasmaQuant MS instruments that are designed for individual adaptation to your laboratory and analytical needs.

Downloads

Brochure PlasmaQuant MS (English)

Open PDF

Technical Data PlasmaQuant MS

Open PDF

TechNote ReflexION (English)

Open PDF

TechNote iCRC (English)

Open PDF

TechNote Aerosol Dilution (English)

Open PDF

TechNote Nitrox (English)

Open PDF

TechNote ICP-MS Accessories (English)

Open PDF
TitleInfo
Manual PlasmaQuant MS (Edition 05.19, English)PDF, 7 MB

Other Devices for Elemental Analysis

High Resolution Continuum Source AAS - contrAA 800

High-performance AAS atomic absorption spectrometer for high-efficiency and high-detection multi-element analysis in routine and research.

Learn more: contrAA 800
