ZEEnit Series - Graphite Furnace Atomic Absorption Spectrometer (GFAAS) Zeeman AAS for demanding sample matrices
-
Powerful: wide dynamic range and continuous calibration
-
Cost-effective: high sample throughput and fast analysis times
-
Versatile: also for direct solid AAS
Product Details
GFAAS Instruments for demanding users
The ZEEnit series from Analytik Jena represents the latest generation of Zeeman AAS. Both the ZEEnit 650 P and the ZEEnit 700 P are compact spectrometers equipped with a transverse-heated high-performance graphite furnace, third-generation Zeeman magnetic field control, and powerful deuterium & Zeeman background correction. The ZEEnit 700 P is a compact tandem spectrometer with an additional fully automatic flame mode.
- 8-lamp turret suited for coded lamps
- Transverse heated graphite tube furnace
- Furnace camera to monitor and control sample introduction and combustion in the graphite tube
- Deuterium and Zeeman background correction
- Optimum adaptation to the analytical task thanks to variable magnetic field strength, 2-field and 3-field correction mode
- Automatic optimization routines for flame composition and burner height
- Direct solid AAS capabilities
- Superior aspherical optical system with extraordinary components, such as a quartz coated toric mirror that provides excellent light throughput
High sample throughput & direct solid analysis
Expand your analytical applications, improve precision and achieve higher testing volumes and lower costs per sample.
Versatile sample introduction technology allows liquid and solid samples to be fed manually or automatically. Intelligent functions such as dilution, enrichment, and weighing guarantee a high sample throughput and allow for overnight operation.

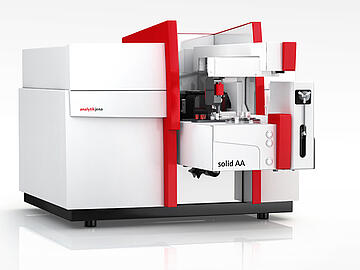

With a variety of manual or automatic solid samplers, using the ZEEnit GFAAS for direct solid analysis is child's play. The 3-field mode opens up a multitude of new possibilities, as significantly higher contents can be measured in a wide variety of samples without dilution.
GFAAS Instruments Choose the best ZEEnit model for your needs
ZEEnit 650 P
Zeeman AAS for graphite furnace and hydride technique
Highly sensitive trace analyzer for recurring measurement tasks, upgradeable for direct solid analysis.
ZEEnit 700 P
Zeeman AAS for flame, graphite furnace and hydride technique
The flexible tandem instrument with two sample compartments for flame, hydride and graphite furnace technology, upgradeable for direct solids analysis.
ASpect LS Software Package
Simple, routine handling provided via a single user interface featuring great flexibility – the ASpect LS makes analysis simple and uncomplicated. Software functions and modules help to meet all legal requirements and standards.
- SOPs for simple method development
- Good laboratory practice (GLP): Control charts for statistical quality control along with notifications whenever defined limit values are exceeded – all in order to maintain comprehensive quality
- Compliant with FDA 21 CFR Part 11
Safety Features
All safety-relevant parameters are continuously monitored by various sensors:
- Maximum operating safety in flame mode
- Electrical safety
- Automatic control of all gas flows
- Unattended operation, including overnight, in graphite furnace mode
Accessories
Performance-enhancing accessories improve precision and sample throughput. They help you meet the challenges of complex matrices in flame, graphite furnace, and hydride modes as well as direct solids sampling.
- Autosampler - for a high sample throughput and routine overnight operation
- SFS 6.0 switching valve technology - Easy handling of high matrix samples
- The Scraper – for automatic burner head cleaning
- USB furnace camera
- Hydride systems - for the detection of mercury and hydride-forming elements
- Solid Sampler - SSA 600 with dilution module for direct solid sampling
Downloads
Brochure ZEEnit series (English)
Open PDF| Title | Info |
|---|---|
| Manual ZEEnit 700 P (English) | PDF, 10 MB |
| Manual ZEEnit 650 P (English) | PDF, 8 MB |
| Manual Software ASpect LS (English) | PDF, 3 MB |
| Manual HS 55 (English) | PDF, 1 MB |
| Manual HS 60 (English) | PDF, 2 MB |
| Manual SSA 6z (English/Deutsch) | PDF, 432 KB |
| Manual SSA 600 (English) | PDF, 4 MB |
